Automatic PCBA Optical Inspection Machine, SMT Online AOI Machine

FOB Reference Price:Get Latest Price
$52,000.00 - $65,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ETA
Model Number:
ETA-V5000H
Name:
SMT Online AOI Machine
Application:
SMT PCB Assembly Production Line
Usage:
SMT, PCBA, PCB
Warranty:
1 Year
PCB Size(mm):
50*50 ~ 510*600
Mini Component:
01005chip, 0.3pitch IC and Special shaped
Power Supply:
AC220 50/60Hz, 5A
Dimension:
940*1360*1500mm (excluding the light)
Weight:
750KG
Type:
SMT Machine Related Products
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Vacuum packed in wooden cases
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Automatic PCBA Optical Inspection Machine, SMT Online AOI Machine

Introduction:

For SMT pre-reflow, post-reflow inline inspection

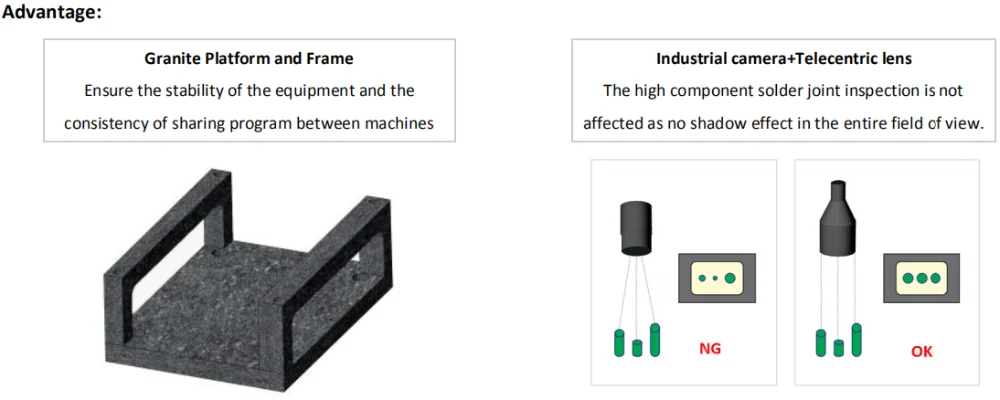

Granite platform, greatly improve machine precision and stability
Programmable RGB+W LED lighting source
Telecentric lens with constant magnification and low distortion response to high component

Specifications
SMT Online AOI Machine ETA-V5000H
Inspection Item

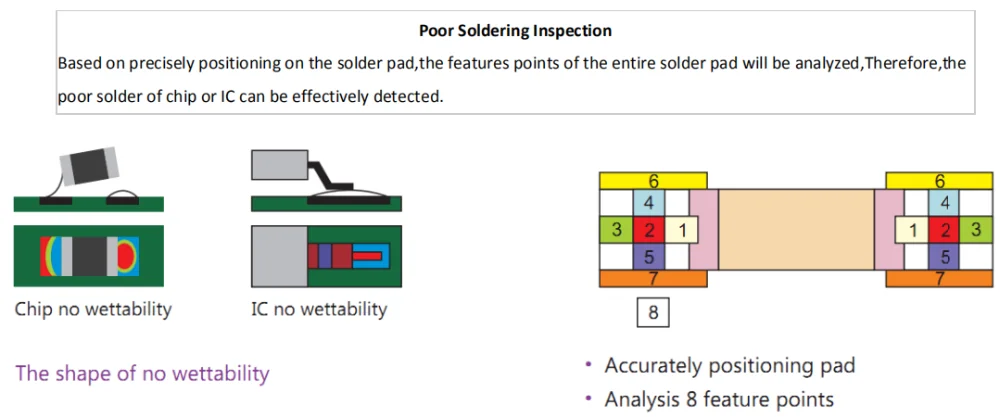

Component test, soldering test
Mini Component
01005chip, 0.3pitch IC and Special shaped
PCB Size
50*50 ~ 510*600 mm
PCB Height
Top: 25mm, Bottom: 45mm adjustable
X/Y Driver
AC servo driver, repeat accuracy 0.01mm
Power
AC 220 50/60Hz, 5A
Compressed Air
0.4 ~ 0.6 Mpa
Communication
SMEMA
Weight
750 KG
Dimension
940*1360*1500 mm (excluding the light)
Related Products

SMT Stencil Printer

SMT Pick and Place Machine

SMT Reflow Oven

SMT Production Line

PCB Cleaning Machine


SMT NG/OK Unloader


Company information

ETA is the leading manufacturer for SMT/DIP machines and solutions with 23 years' experience in China, and we are also SMT supplier for HUAWEI factory in China. We have professional after-sales service team that provides overseas service.

Successful Experience:
ETA's customers in 35 countries around the world.
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technicians for customers.
3. Became the most reliable Chinese partner for you.

For SMT factory setup, we can do for you:
1. We provide full SMT solution for you
2. We provide core technology with our equipment
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any questions about SMT

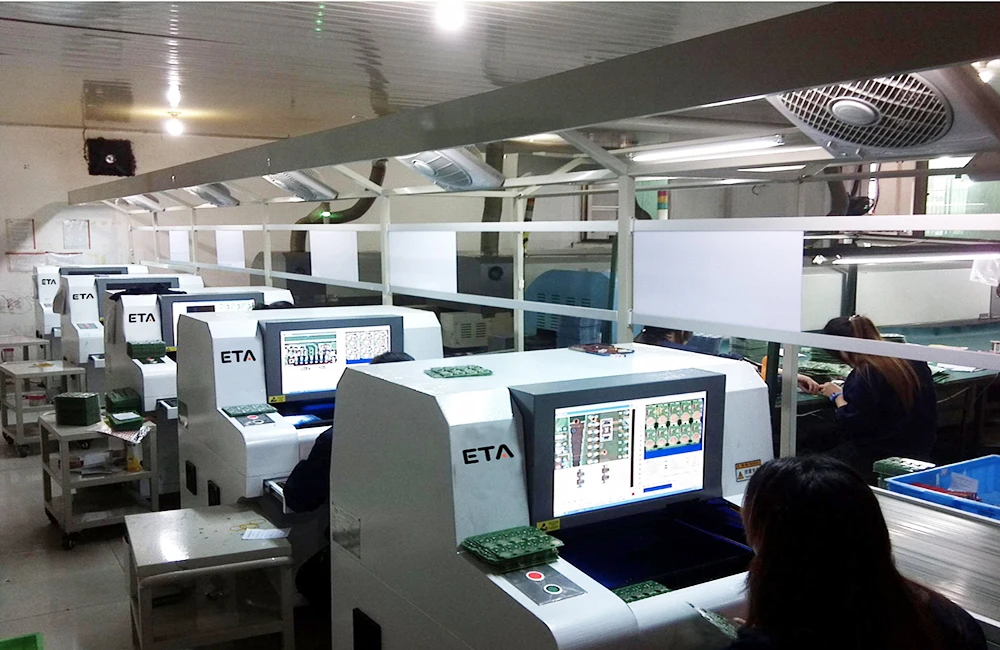

Our Factory




Our Customers

ETA Engineers installed in Bulgaria

ETA Engineers installed in Argentina

ETA Engineers installed in Algeria

Exhibition

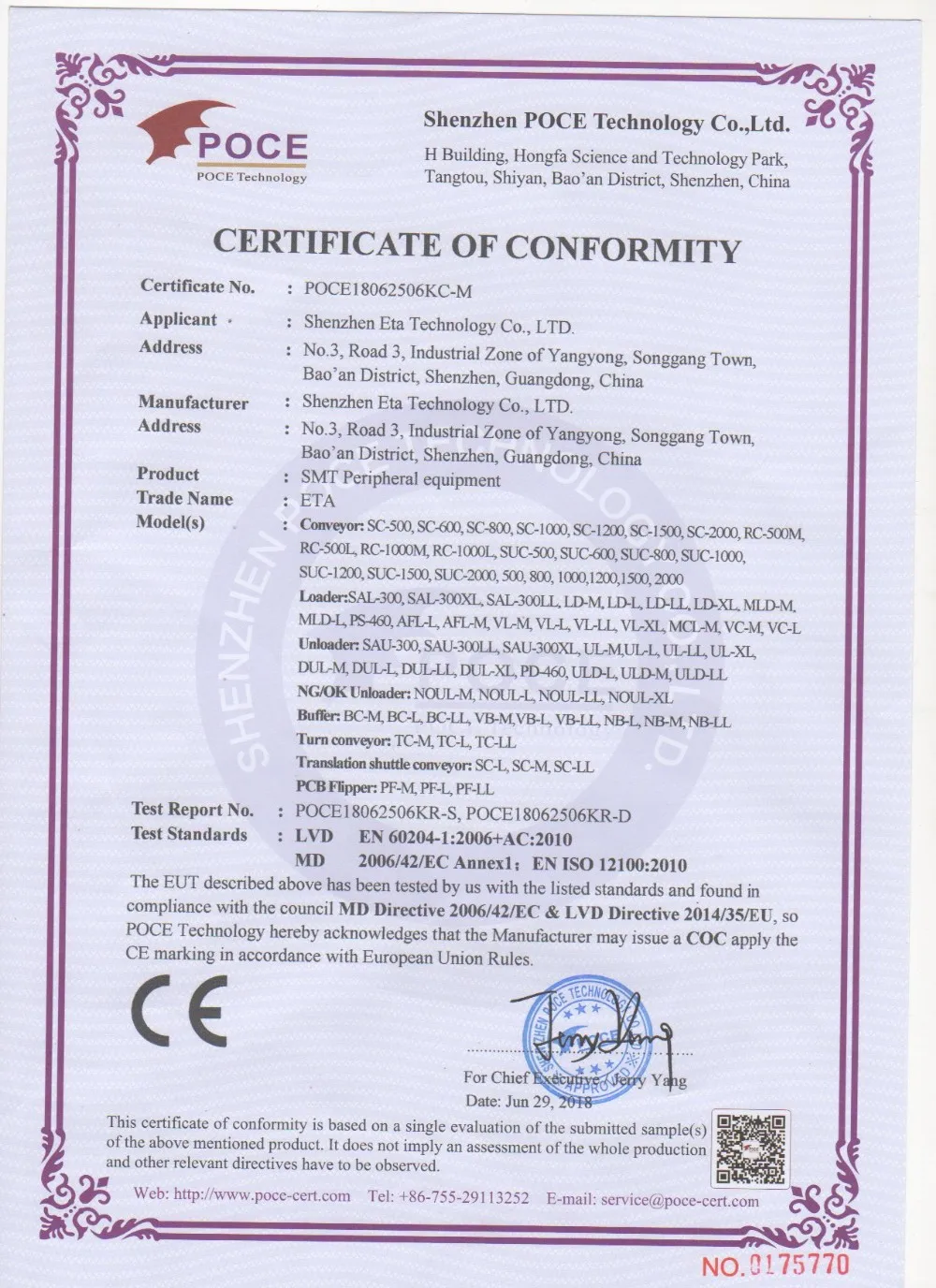

Certifications

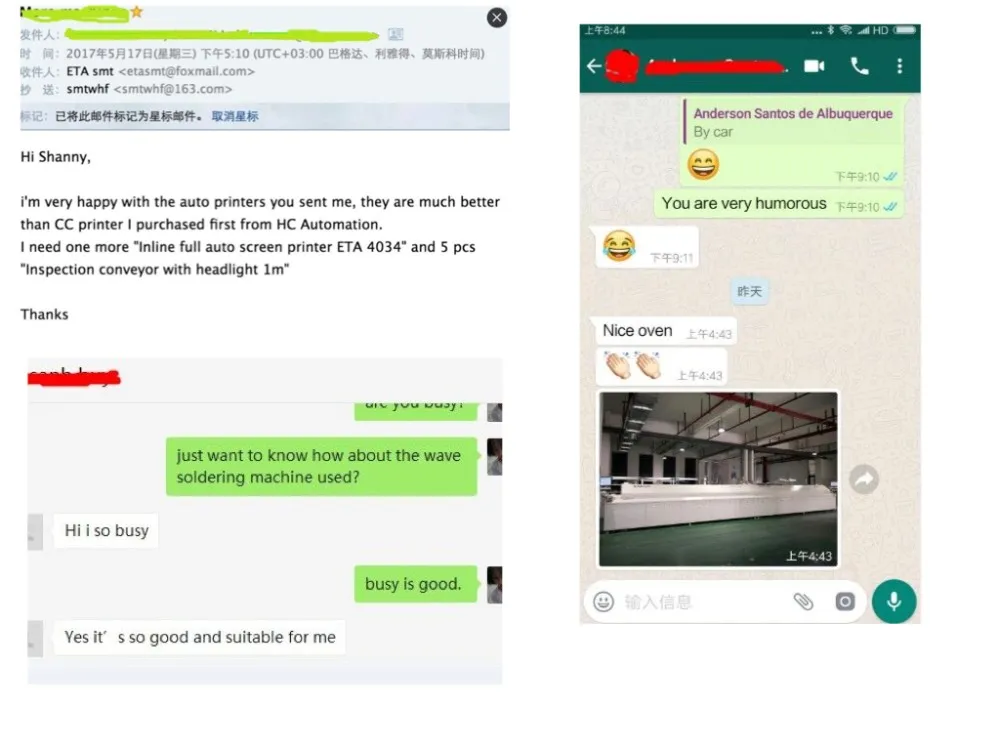

Customers' Feedback

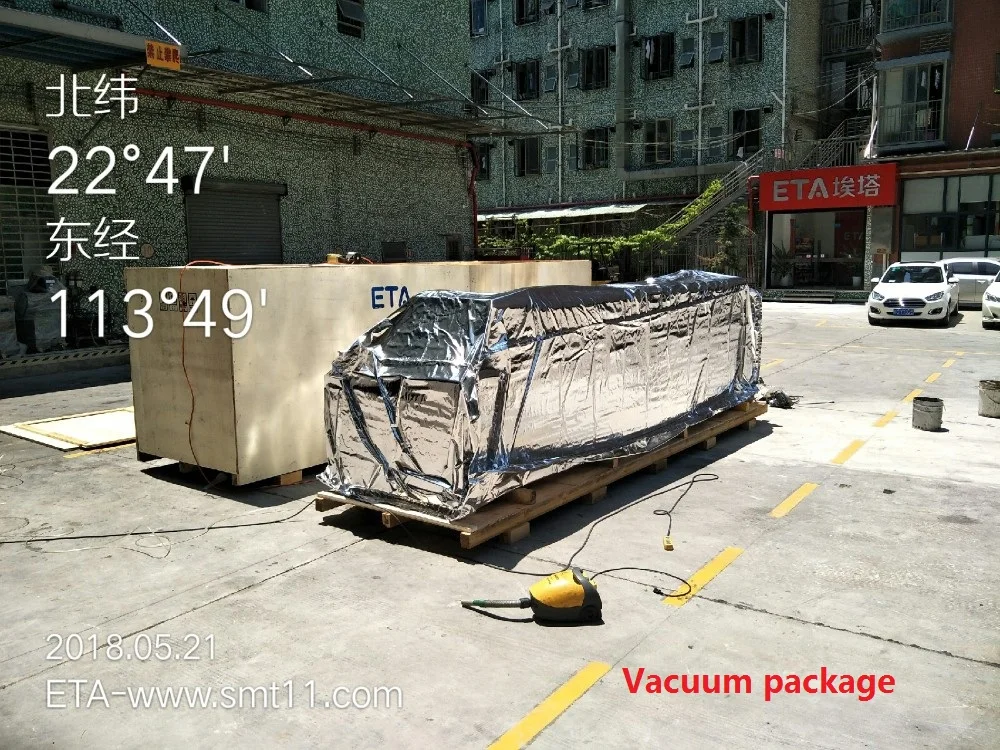

Packing & Delivery

Packing Method:

Standard wooden package

Shipping Ways:
By air, for sample and small package,international express
like DHL, UPS, EMS...
By sea, for large package and quantity;
Other ways as customer requested.

Delivery Time: 35 Days
Our Service

Pre-Consultation: provides professional SMT solutions for the full line.


Factory Warranty: One-year warranty factory service.

Installation: On-site installation and commissioning, to ensure smooth production.

Technical Training: provides professional training from Level 1 to Level 3.

Technical Support: provides 7 * 24 technical support.
FAQ

1. Are you a trade company or a manufacturer?
→ OEM & ODM service are available.

2. What is your delivery date?
→ The delivery date is about 35 days after receipt of payment.

3. What are your payment terms?
→ 30% deposit in advance and 70% balance before shipment.

4. Your main customers?
→ Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon.
